Shitty Kitty V2

Your favorite badge is back—and this time, it's smarter, brighter, and packed with features!

Order now for pick-up at DEF CON 33! (Shipped orders will only be available after DEF CON, subject to available inventory)

What’s New?

• Dual Screens: Experience double the fun with two vibrant 0.96-inch color IPS displays.
• Improved Battery Management: Featuring a 2,000mAh LiPo battery, the Shitty Kitty V2 offers all-day use. The screens can be turned off individually to extend battery life further.

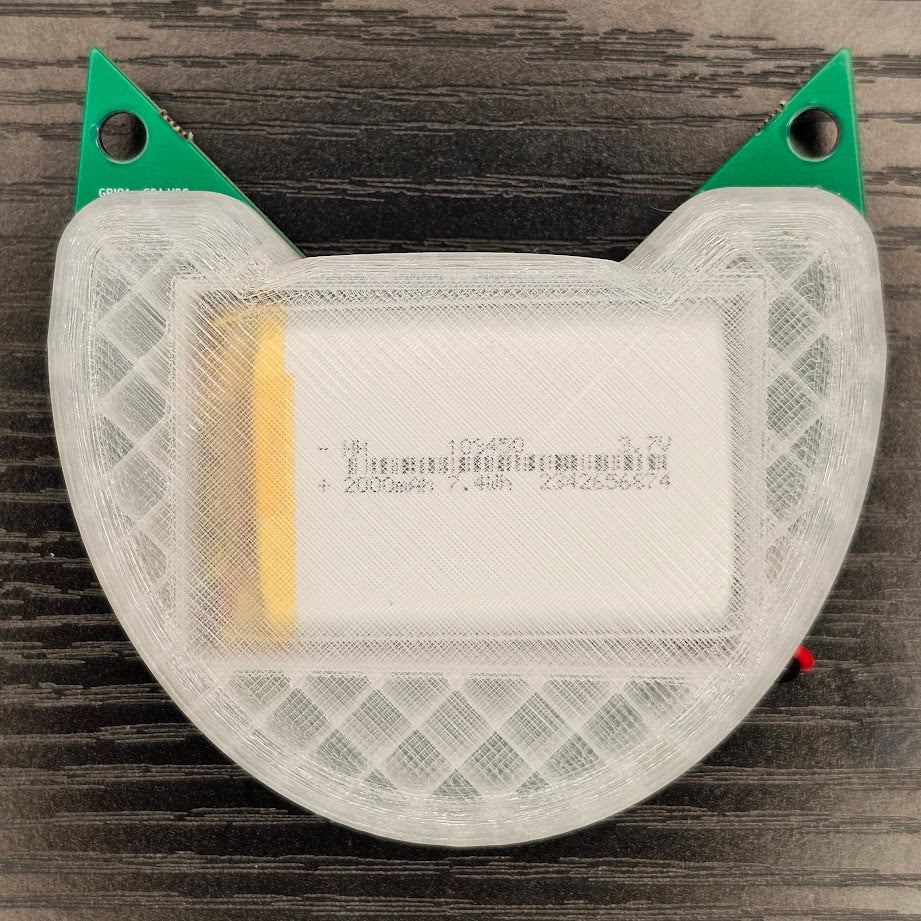

• Enhanced Safety: A durable polycarbonate back case securely encloses the battery for added protection.

Feature Highlights:

• Two Fully Connected SAO Ports: Fully compliant with the 1.69bis standard, each SAO port features dedicated GPIO pins, UART peripherals, and I²C connections.
• RP2040 Power: Powered by the popular Raspberry Pi RP2040 with dual-core Arm Cortex-M0+ running at 200MHz, ensuring smooth performance.
• Easy Firmware Updates: Effortlessly flash firmware via USB-C with built-in USB mass storage support.
• Five-Button Interface: Intuitive navigation through menus, enabling quick adjustments to demos, text display, and settings.

Full Specifications:

• SAO Ports:
  • 2x Fully Connected 1.69bis-compliant SAO Ports
  • Independent GPIO, UART, and I²C connections per port
• Displays:
  • 2x 0.96-inch, 80x160, Color IPS Screens
• Microcontroller:
  • RP2040 dual-core Arm Cortex‑M0+ @200MHz
  • 264kB SRAM
  • 16MB Quad SPI flash memory
• Battery and Power Management:
  • Included 2,000mAh LiPo battery
  • BQ24072RGT Battery Management Controller
  • TPS63051RMWR Buck-Boost power supply (3.3V) for efficient and safe operation
  • Thermal monitoring and up to 1.5A fast charging support
• User Interface:
  • 5 User Buttons
  • Dedicated boot button for easy firmware updates
• Durability and Convenience:
  • Sturdy polycarbonate casing
  • USB-C port for convenient charging and updates

SkittyOS Firmware Features:

• Dynamic graphics demos
• Customizable scrolling text ideal for name badges
• Adjustable fonts, sizes, and extensive international character support
• Individual screen configuration and demo modes
• Immediate support for the Skull of Fate SAO from MakeItHackin, with more SAOs supported soon
• Persistent storage of settings in flash memory

Open-source firmware code will be available following DEF CON.

Experience the evolution of badges and SAOs with Shitty Kitty V2!

DEF CON Pick Up

We will be doing badge drops at the new Badgelife Community. Please pay attention for email updates about times for you to pick up your badge. If you do not get your badge, we may or may not offer to ship it to you. If we do, we will possibly need you to pay for shipping.
